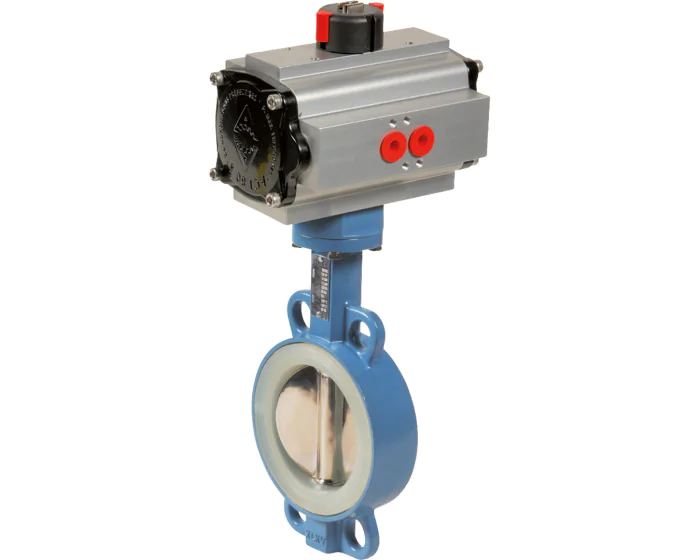

The 1183 series ductile iron butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M polished disc, up to DN300. It is a wafer type PN10/16 and ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | Yes |
| Lockable | No |
| ATEX compatible | Yes |
| DN | DN50 - 2'' |
| Face to Face (mm) | 78.0 |
| Seat | Silicone - Food grade |
| Body material | Ductile iron |
| ATEX protection mode | Ex c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M mirror |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16/40 #150 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 2 years |
| CE | Risk category III |
| Range | TTV |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16/40 #150 Ductile iron Concentric DN50 - 2'' Double acting | 260495015100 | S1003639 |
€297.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Ductile iron Concentric DN50 - 2'' Spring return | 260495016101 | S1003640 |
€337.49
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Ductile iron Concentric DN65 - 2''1/2 Double acting | 260496015101 | S1003641 |
€357.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Ductile iron Concentric DN65 - 2''1/2 Spring return | 260496016102 | S1003642 |
€406.39
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Ductile iron Concentric DN80 - 3'' Double acting | 260497015101 | S1003643 |
€401.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Ductile iron Concentric DN80 - 3'' Spring return | 260497016102 | S1003644 |
€444.99
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Ductile iron Concentric DN100 - 4'' Double acting | 260498015102 | S1003645 |
€453.59
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Ductile iron Concentric DN100 - 4'' Spring return | 260498016103 | S1003646 |
€511.91
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Ductile iron Concentric DN125 - 5'' Double acting | 260499015102 | S1003647 |
€533.06
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Ductile iron Concentric DN150 - 6'' Double acting | 260500015103 | S1003648 |
€645.34
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Ductile iron Concentric DN200 - 8'' Double acting | 260501015104 | S1003649 |
€875.79
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Ductile iron Concentric Double acting DN250 - 10'' | 260502015105 | S1003650 |
€1,282.54
(excl. btw)
|
add to cart |
| Between flanges PN10/16/40 #150 Ductile iron Concentric Double acting DN300 - 12'' | 260503015106 | S1003651 |
€1,678.19
(excl. btw)
|
add to cart |
